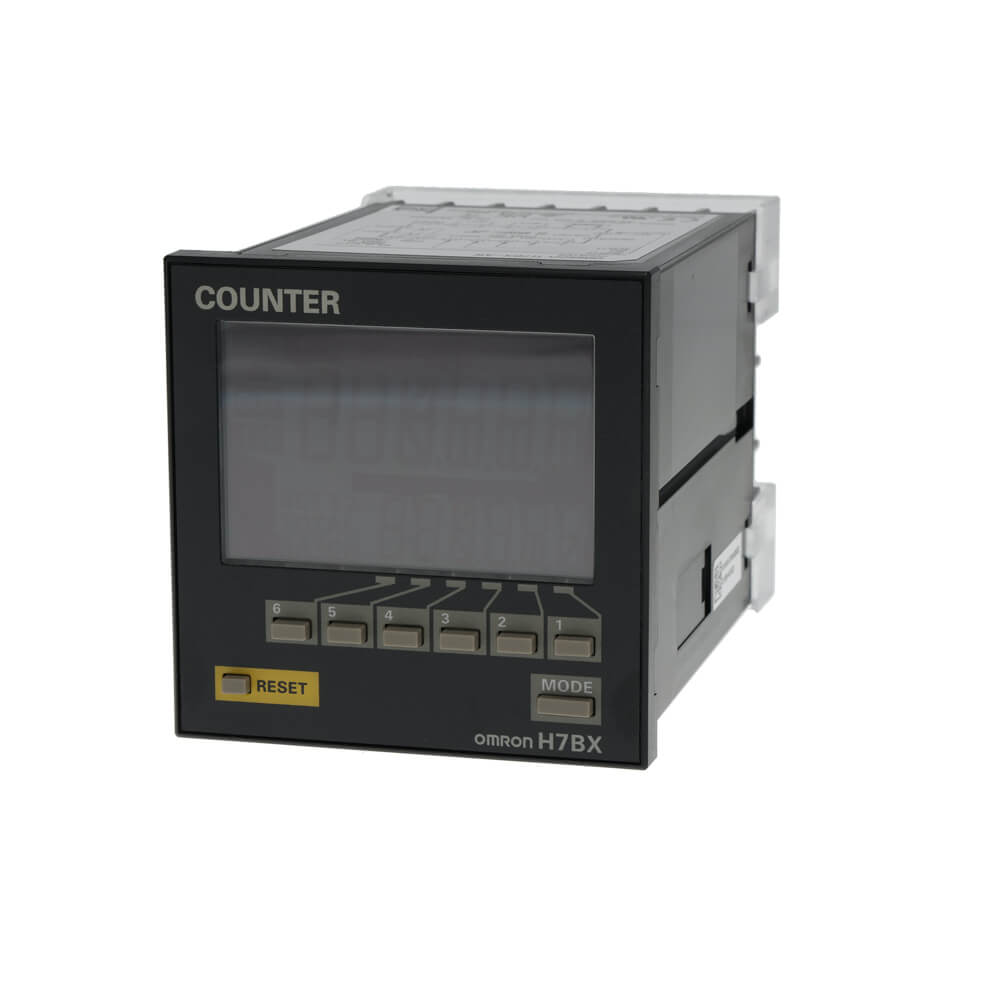

H7BX-AW
72x72 mm, LCD-6 cijfers, multifunctie, 2-stage, 100-240 VAC, uit: relais + NPN, in: NPN/contact, schroefaansluiting
Specificaties
| Type | Pre-set counter |
| Size | 72 x 72 mm |
| Counting functions | 1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter |
| Counting range | -99999 - 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal | Screw |
| Output type | Relay, Transistor |
| Relay output | 2 |
| Transistor output | 2 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 100-240 V |
| Speed | 5000 Hz |
| Product Width (unpacked) | 72 mm |
| Product Height (unpacked) | 72 mm |
| Product Depth (unpacked) | 100 mm |
